ACE TONE GT-7

Overview

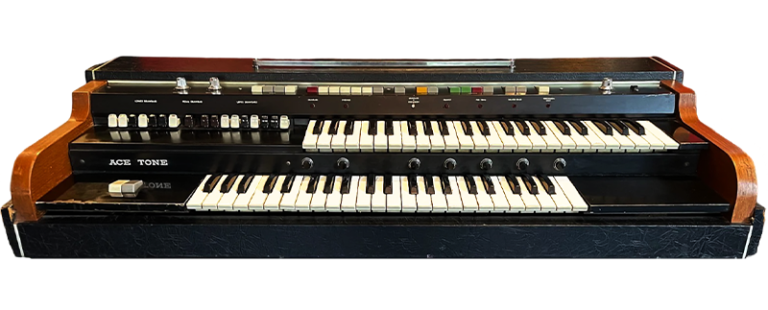

The ACE TONE GT-7 is an electronic combo organ manufactured by Sakata Shokai in Osaka, Japan. It was launched in 1971 and is compatible with Leslie Speakers.

Key Features

• Keyboards:
  • Upper Manual: 44 Keys (F scale)
  • Lower Manual: 44 Keys (F scale)
  • Pedal: 13 Keys (C scale)
• Drawbars:
  • Upper Manual: 9 drawbars (16′, 5-1/3′, 8′, 4′, 2-2/3′, 2′, 1-3/5′, 1-1/3′, 1′)
  • Lower Manual: 7 drawbars (8′, 4′, 2-2/3′, 2′, 1-3/5′, 1-1/3′, 1′)
  • Pedal: 16’/8′
• Sound Generation: Synthesizing sine-wave system

Presets

• Upper Manual: Drawbars and Percussion, Trumpet, Full Tibias, Theatre Brass, Percussion Only
• Lower Manual: Drawbars, Ensemble Effects
• Pedal: 16’/Pedal/8′, String Bass 1, String Bass 2, Mute

Effects and Controls

• Percussion: Percussion Forte, 8′ Unison, 4′ Octave, 2-2/3′ Twelfth, 2′ Super Octave, 1-3/5′ Seventeenth, Slow / Decay / Fast
• Brass Mute: Slow / Mute / Fast
• Vibrato: Vibrato 1, Vibrato 11, Delay Vibrato, Slow / Delay / Fast
• Reverb: Reverb 1, Reverb 2, Brilliance
• Other Controls: Volume, Reiteration Rate, Pitch, Monitor, Slow / Leslie / Fast

Connectivity

• Outputs: Leslie, High Out, Low Out, Earphone
• Inputs: High In, Low In, Pedal Connector
• Power: AC Outlet, Power Switch

Historical Context

The GT-7 was the larger model of the Ace Tone GT-5, which is identical to the Hammond X-5. Around the time of its launch, Hammond began marketing combo and portable organs made by Sakata Shokai under the Hammond name (models X-2, X-5, and B-200). Subsequently, Ace Tone organs disappeared from the U.S. market.
