The Yamaha CP-30 Electric Piano, released in 1978, is a sturdy analog instrument known for its unique sound and robust design. Weighing approximately 100 pounds, it features a case that converts into legs, making it both portable and functional.
Virtual Yamaha CP-30

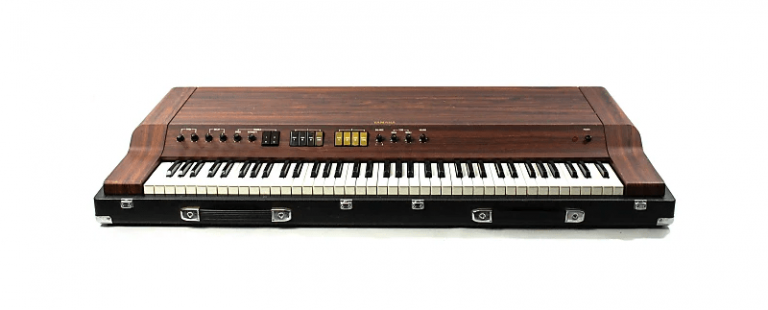

YAMAHA CP-30 ELECTRIC PIANO
Overview
The Yamaha CP-30 Electric Piano, released in 1978, is a sturdy analog instrument known for its unique sound and robust design. Weighing approximately 100 pounds, it features a case that converts into legs, making it both portable and functional.
Sound Generation
- Synthesis Type: Analog subtractive synthesis
- Sound Generation: Electrically generated using divide-down technology
- Voices: Two voices with four preset tabs that can be mixed
- Piano Sounds: Mellow tones reminiscent of Rhodes or Wurlitzer
- Harpsichord Sounds: Similar to Clavinet
Controls and Effects
- Tremolo Effect: Adjustable speed and intensity for each voice
- Pitch Control: Chorus effect for each voice
- Effects Unit: One effects unit (tremolo)
Keyboard and Polyphony
- Number of Keys: 76-key keyboard
- Maximum Polyphony: 76 notes
- Velocity Sensitivity: Yes
- Oscillators per Voice: Minimum of 1, maximum of 2
- Multi-timbral Capability: 3 parts
Memory
- Patches: 4 preset patches available
Connectivity
- Audio Outputs: 3 (excluding headphones)
- Audio Inputs: None
- MIDI Outputs: None (excluding Thru)
- MIDI Inputs: None
Conclusion
The Yamaha CP-30 is a unique electric piano that offers a vintage sound experience. While it shares the CP designation with the CP-70 and CP-80 series, it stands out due to its analog sound generation and distinctive design, making it a valuable instrument for collectors and musicians alike.
